Brief Introduce 簡要介紹

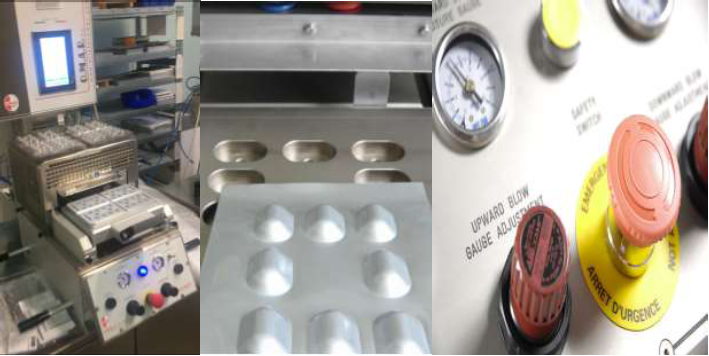

Innovative blistering machine practical and compact used to make high-quality blisters from pre-cut plastic and aluminium sheets. All operations needed for blister packaging are carried out simply and quickly on the same machine, by changing and replacing the format-related parts and with no need to resort to wrenches or specialised personnel Personalised projects can be developed based on the customer's actual requests, and made-to-measure moulds can be made in terms of dimension, configuration and quantity of blisters. Electric and electronic management is ensured by high-precision instruments installed on the machine that make it possible to produce high-quality blisters.
創新的泡罩機實用和緊湊，可以從預切塑料和鋁板用于制造高質量的泡罩。泡罩包裝所需的所有操作進行簡單而迅速，在同一臺機器上，通過改變和替換插件部分和不需要訴諸扳手或專業人員就可以開發個性化的項目。根據客戶的實際要求,和定制的模具可在尺寸方面,配置和需要數量的泡罩。電氣和電子管理是確保高精密儀器安裝在機器上，使它有可能產生高質量的泡罩。
MAIN CHARACTERISTICS 主要特點
-
Semi-automatic blistering machine
半自動泡罩包裝機
-
Machine with compact dimensions for or on bench with pivoting wheels
機器結構緊湊，可用于桌面放置
-
Management and control of processing times through high-precision timers
高精度計時器管理和控制處理時間
-
Management and control of the temperatures through high-precision thermoregulators
高精度加熱器管理和控制溫度
-
Built-in safety systems
內置安全系統
-
Electronic piece counter
電子計數器
-
Blisters made of PVC-ALU
可做鋁塑泡罩
-
Blisters made of ALU-ALU
可做鋁鋁泡罩
-
Plastic material forming area 212x132mm
塑料材料成型區域212*132mm
-
Maximum height of PvC blister pockets 18 mm
塑料泡罩最大深度18mm
-
Maximum height of ALU-ALU blister pockets 10.5 mm
鋁鋁泡罩最大深度10.5mm
-
The machine can be positioned on a bench equipped with pivoting wheels for easy handling inside the department
機器可以被放置在帶輪子桌面上，方便在部門間移動。
PRODUCTON 產量
-
Daily production (7 hours) of blisters made of PVC-ALU up to approx 3,000 units
鋁塑泡罩日常產量（7小時）最高可達3000片
-
4 blisters per stroke, maximum format 100x60 mm
每次4版，最大模具面積100*60mm
-
Daily production (7 hours)of blisters made of ALU-ALU up to approx 1 300units
鋁鋁泡罩日常產量（7小時）最高可達1300片
-
1 blister per stroke, maximum format 160x95 mm (or smaller size)
鋁鋁泡罩每次一板，最大模具面積160*95mm(或更小尺寸)
