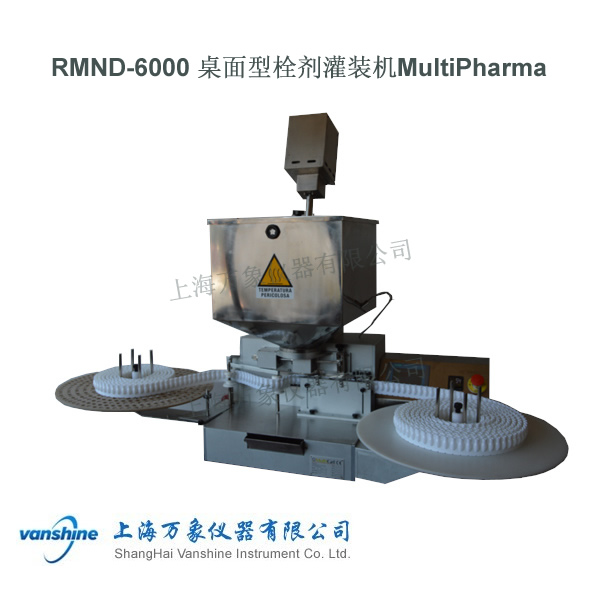

Automatic dosing machine used to fill preformed cells for vaginal suppositories and suppositories.
自動化灌裝機用來填充陰道用預成型細胞栓劑和其他栓劑。
The machine has a dosing unit with two peristaltic pumps for filling liquids and a heated stainless steel dosage valve
that is micro metrically adjustable with increments equal to 1/10 ml for the melted mass of suppositories and vaginal suppositories.
該機器有一個帶有兩個蠕動泵的加藥裝置，用于填充液體和加熱的不銹鋼劑量閥，閥微量可調，增量等于1/10 ml栓劑和陰道栓劑的融化物。
The dosage range varies from 5 to 15 ml for the single-dose, from 0 to 3.5 ml and from 2 to 5.5 ml for the vaginal suppositories and suppositories, depending on which dosing unit is installed.
單次給藥的劑量范圍為5至15毫升，陰道栓劑的劑量范圍為0至3.5毫升，其他栓劑劑量范圍為2至5.5毫升，取決于安裝的劑量裝置。
The hourly production varies from 3,000 to 6,000 items an hour.For the vaginal suppositories and suppositories, the machine is equipped with a heated hopper with water thermostat contained in the double wall with the possibility to adjust the temperature and with a recirculation pump.
每小時的產量從3000到6000件不等。對于陰道栓劑和栓劑，該機器是配備加熱式料斗，雙壁中裝有水恒溫器，通過一個再循環泵可調節溫度。
There is also an impeller on the hopper that is able to maintain the melted mass in consistent and in homogenous movement. Both the shaker speed and the temperature of the water contained in the hopper sleeve are adjustable.
料斗上還有一個葉輪，能夠使熔化的物質保持一致和均勻的運動。振動速度和料斗套筒中的水溫均可調節。
The reels of the empty containers-cells are positioned on a feeding disk from which they are dragged and automatically led under the dosage station. They are also automatically collected on a second disk. For the vaginal suppositories and suppositories, the disks with the filled cells can be placed, for a quick cooling, in the cooling unit (optional).
空容器單元的卷軸定位在進料盤上，從進料盤上拖出并自動引導到加藥站下方。它們也會自動收集到第二張磁盤上。對于陰道栓劑和其他栓劑，可以放置帶有填充單元的盤狀物， 進行一段時間快速冷卻，在冷卻裝置中（可選）。
After the filling the reels are placed on the S-MND 6000 sealing machine.All operations and settings are operated by a touch screen and all functions have been planned in keeping with GMP regulations.The parts coming in contact with the product can be easily inspected and dislodged, and are made of stainless steel (AISI 316 L on request) or FDA approved materials.
填充后，將卷筒放置在S-MND 6000栓劑封口機上。所有操作和設置均通過觸摸屏和功能已按照GMP規定進行規劃。與產品接觸的零件可輕松檢查和移除，并由不銹鋼（AISI 316 L根據要求）或FDA批準的材料制成。
Temperature Range 10-35 C°
